TOP-LINE TED U-assembly

Pivot door and panel in a straight line with wall clips + 2x Fixed panel
Available frame finishes3 - check out
Available glass finishes5 - check out
DimensionsWidthHeight
StandardTED: 800, 900, 1000, 1100, 1200, 1400
TOPF: 700, 750, 800, 900, 1000, 1200, 1400
1900
SpecialTED: 700 - 1400
TOPF: 250 - 1400
up to 1900

Characteristics of the model range TOP-LINE

Standard height 1900 mm
Standard height 1900 mm
Quality conforms to EN 14428:2008+A1 standard
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Aquaperle anti-plaque glass treatment

Product characteristics TED

5 glass finishes
5 glass finishes
6 mm safety glass
6 mm safety glass
Width to 1400 mm
Width to 1400 mm
Special sizes available
Special sizes available
Reversible door and fixed panel
Reversible door and fixed panel
Magnetic closing
Magnetic closing
Pivot door with outside opening
Pivot door with outside opening

Product characteristics TOPF

5 glass finishes
5 glass finishes
6 mm safety glass
6 mm safety glass
Width to 1400 mm
Width to 1400 mm
Possibility of cut straight or at an oblique angle
Possibility of cut straight or at an oblique angle
Special sizes available
Special sizes available
Equalizing profile
Equalizing profile
Equalizing profile
Equalizing profile
Equalizing profile
Equalizing profile
Clip junction
Clip junction

Available frame finishes

SILVER MATT
01
WHITE
04
SILVER GLOSS
50

Available glass finishes

CLEAR (07)
check models
GRANIET (22)
check models
MASTER CARRé (30)
check models
SCREENPRINTED SATIN (49)
check models
SCREENPRINTED BAND (51)
check models

Files

Instructions and spare parts
File description Version Download
EVT6 - Corner stabilizer bar 2Download PDF 0,2 MB
TOP-LINE TED TED+TOPF (19329)15Download PDF 1,9 MB
Spare parts TOP-LINE TED+TOPF (19329)Download PDF 0,2 MB
Product images
File description Download
TOP-LINE series detail imagesDownload ZIP 23,5 MB

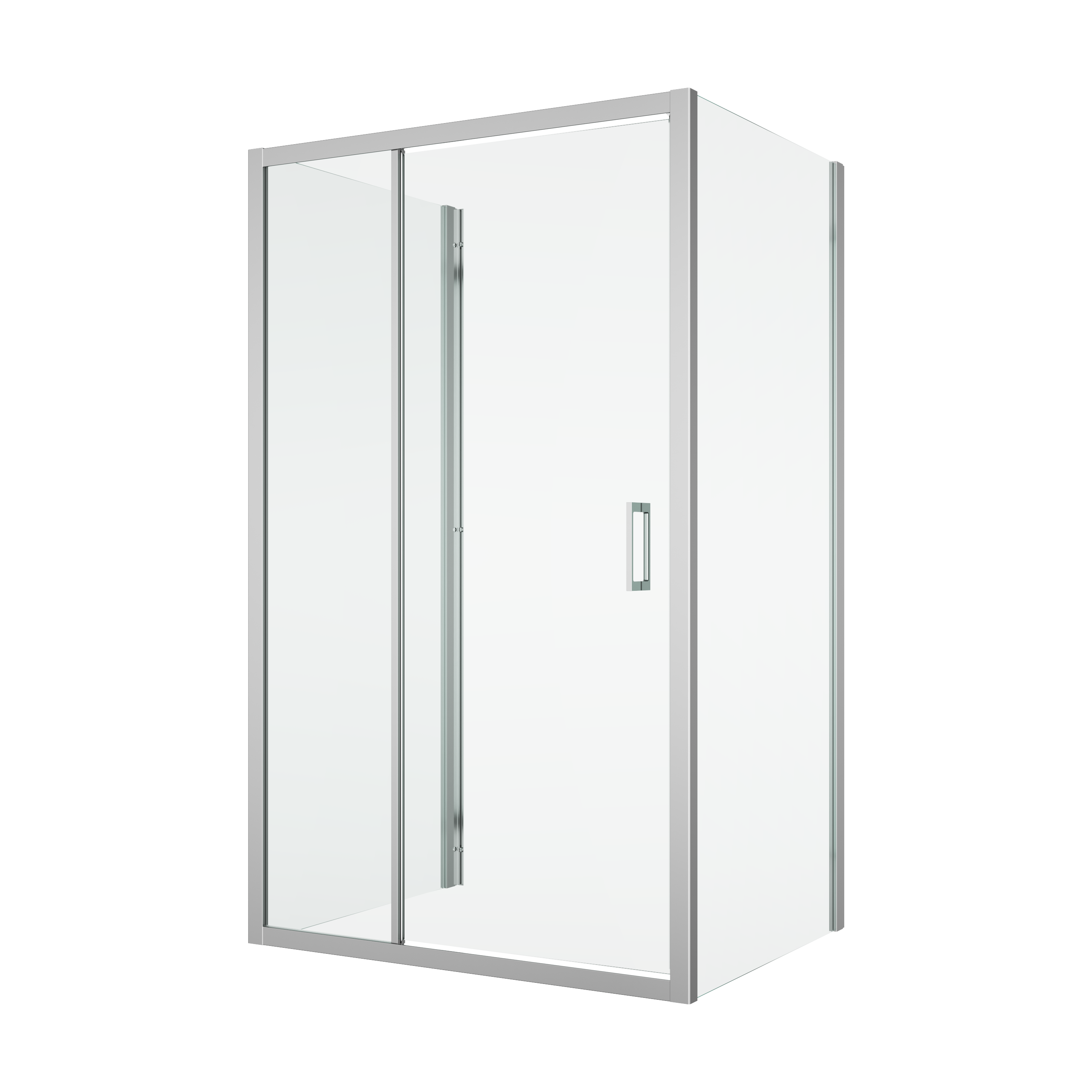

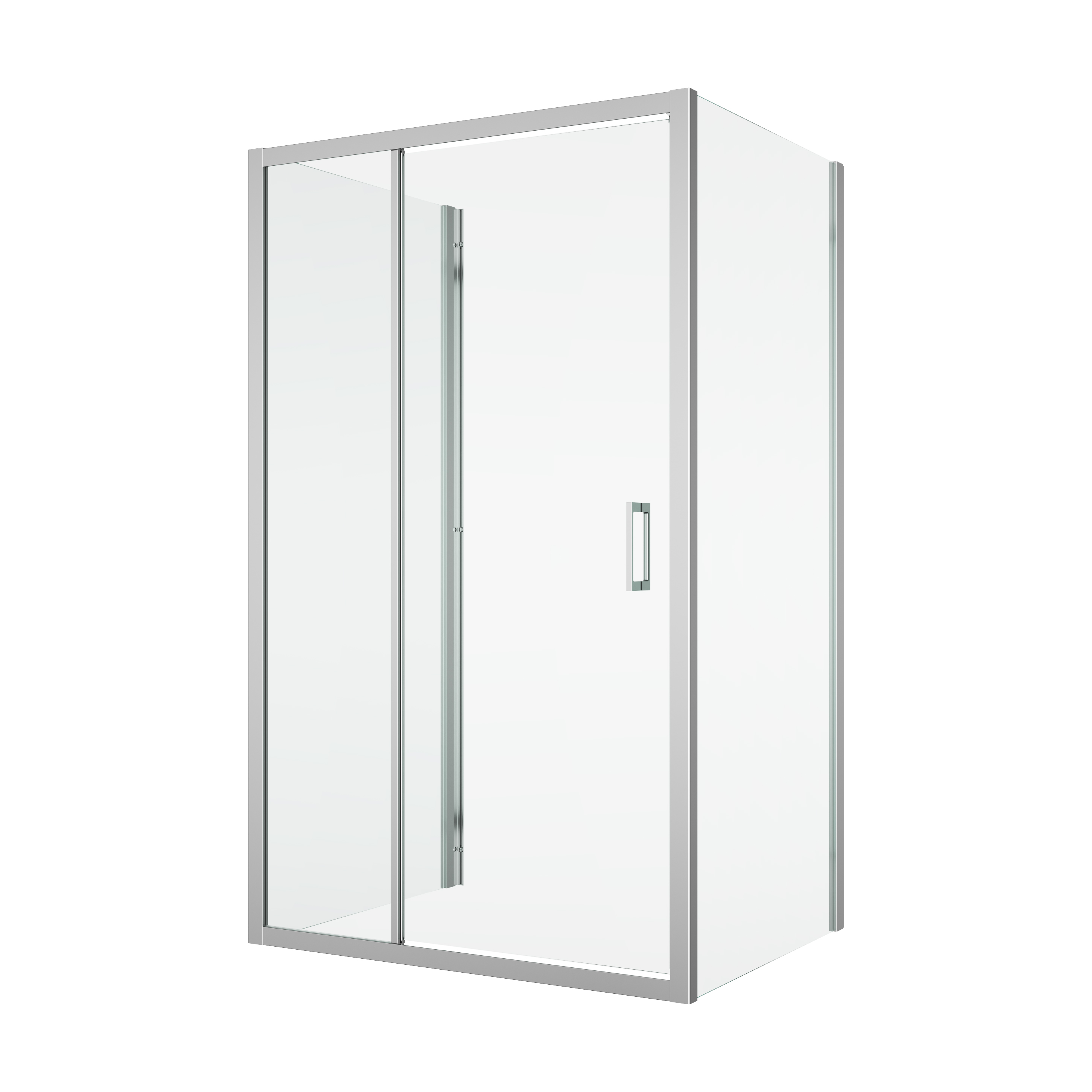

TOP-LINE TED+TOPF+TOPF on white background (JPG)Download JPG 0,8 MB
TOP-LINE TED+TOPF+TOPF on white background (PNG)Download PNG 11,6 MB
CAD files
No files.
Technical drawings
No files.
